ZONE VALVE BOX
Showing all 6 results

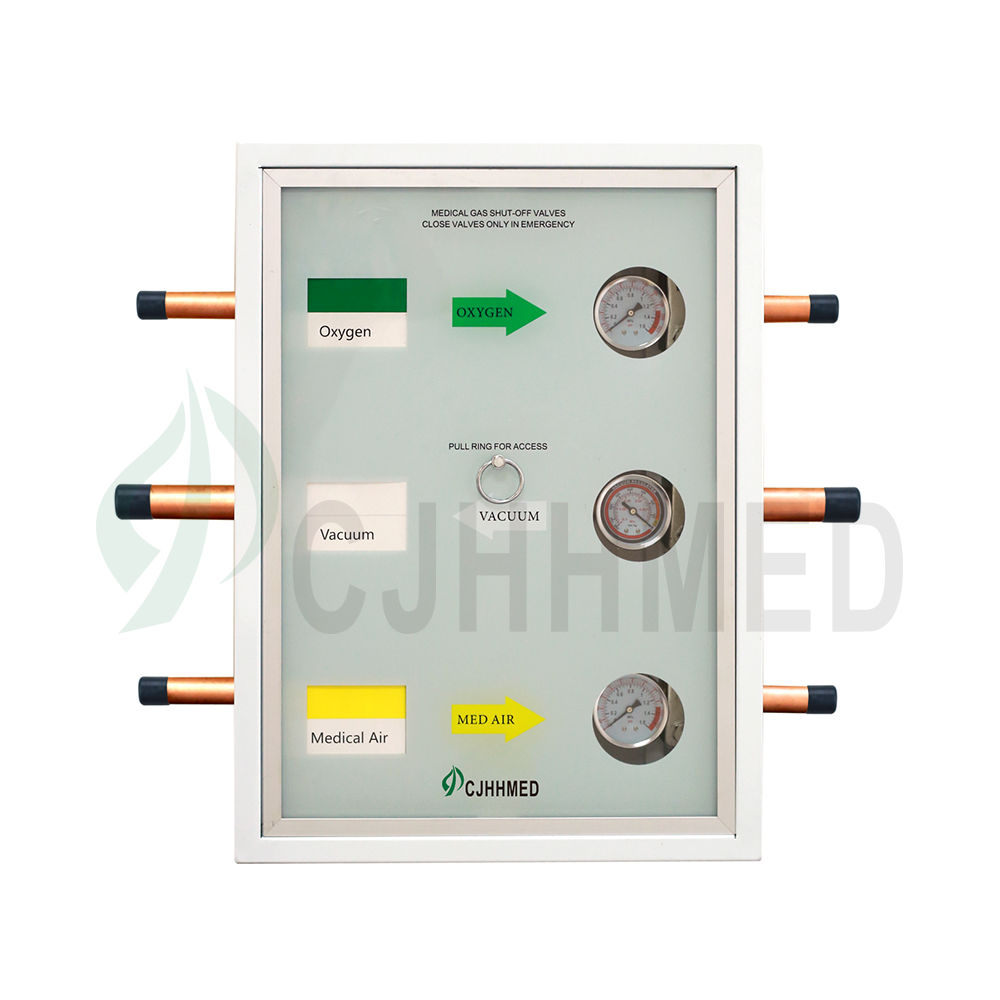

Zone Valve Box is mainly used in medical pipeline to allow maintenance of individual zone without disturbing the gas flow to other zones. In case of emergencies, zone valve box can also be used to shutoff of gas distribution to individual zone. A single box can hold from 1 to 7 valves, allowing control of 7 types of gas.
Designed to house up to seven shut-off valves, each valve controls a different gas
Wall mount style
Accept valve sizes 1/2 through 2 inches
Temperature -20-60℃;Humidifier 10%-95%
Maximum pressure of Oxygen, Air(4bar), N2O, CO2 is 0.8MPa without leakage
Maximum pressure of N2 and Air(7bar) is 1.2MPa without leakage
Maximum pressure of VAC is -0.075MPa without leakage
