BRITISH STANDARD GAS OUTLET
Showing all 1 results
Compliant with BS EN 737-1:1998 standard
Gas Type: O2 , MEDICAL AIR, VAC, N2 O, N2 , CO2 are available

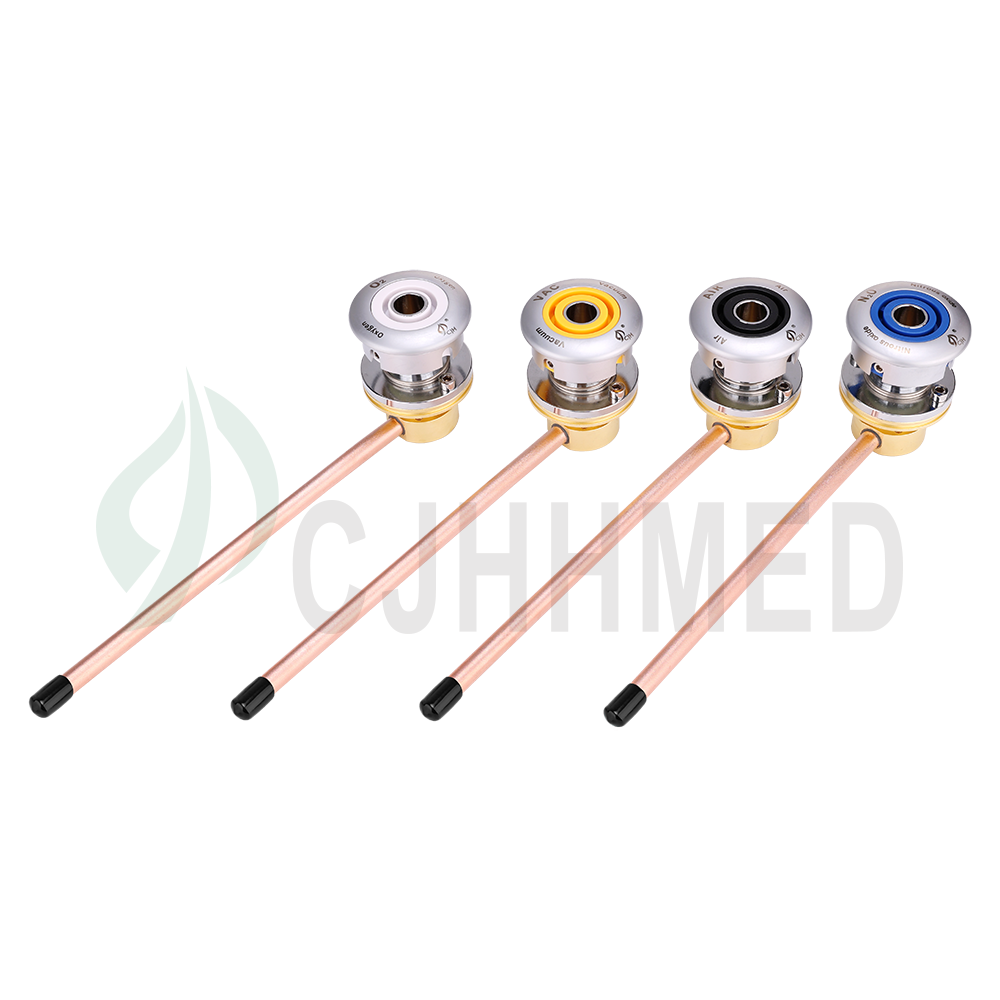

Available in wall type with box, console type on bedhead units and hose barb type
100% pressure and leakage tested
Quick connections with no risk of gas cross-connection
Color-coded according to ISO32
Suitable ambient temperature: -20℃ to 60℃, ambient humidity: 10% to 95%
The working pressure for oxygen, air (breathing), nitrous oxide, and carbon dioxide is 0.4MPa
The working pressure for nitrogen and instrument air is 0.8MPa
The negative pressure working pressure is -0.075MPa
The maximum gas supply flow rate is more than 100L/min; the maximum suction flow rate is more than 40L/min
