ANESTHETIC GAS SCAVENGING SYSTEM (AGSS)
Showing all 1 results
| System | Model | Power(kw) | System Flow (m³ /h) | Noise level dB (A) | Dimensions(mm) | weight (kg) | maximum number of dental chairs supplied |
| 2 | MEDAGSP-0.85D | 0.85 | 65 | 69 | 1000*600*1200 | 105 | 6 |
| MEDAGSP-1.6D | 1.6 | 118 | 73 | 1100*600*1200 | 123 | 10 | |
| MEDAGSP-3.0D | 3.0 | 205 | 82 | 1200*600*1200 | 156 | 20 |

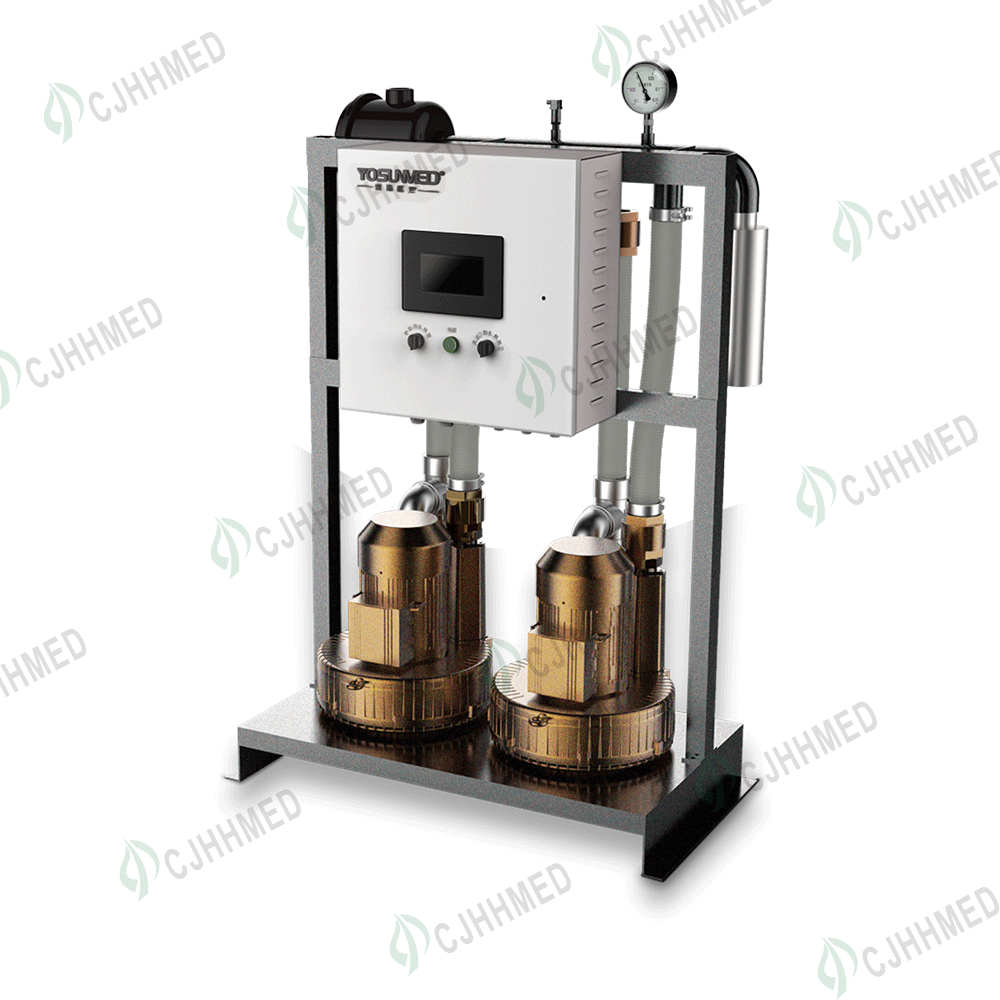

AGS (Dental Vacuum System) is duplex designed plant, allows servicing of one pumps, while the other remains in operation. Ensures terminal units pressure is guaranteed to be lower than -15KPa. Robust skid mounted frame with compact component layout, combines ease of use, installation and maintenance
Double oil-less vacuum pump, each has drain flask and equipped with SlEMENS PLC controller, able to contro automatically or manually
Inlet and outlet fit with flexible connectors, prevent breaking from vibration. Automatic restart after voltage failure occurs. Remote switches can be installed at any convenient location
Remark:
1. All system flows are shown at reference conditions, 125 mbar
2. System flow is for serving pump, exclude standby pump
